Spray Oil Machine and production equipment
We supply the Spray Oil Machine, provide production equipment at an affordable price, comprehensive care services, the installation of the machine and training.

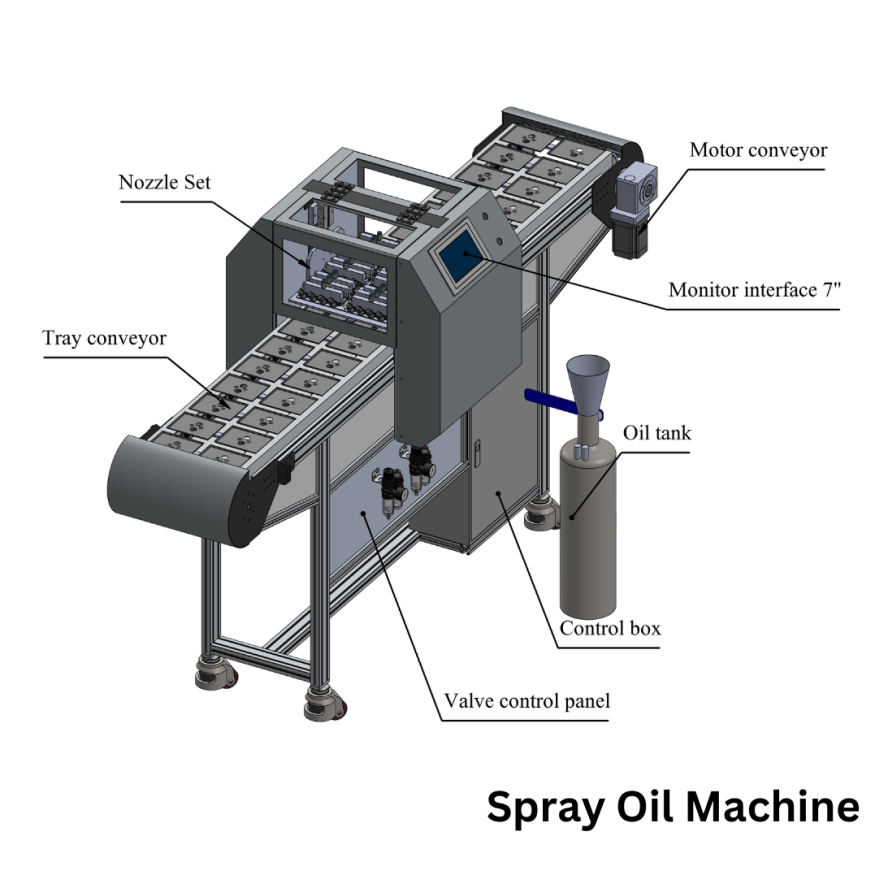

The Spray Oil Machine comes standard with stainless steel and aluminum structure, easy-to-clean contact parts, design of dual-tray conveyor system and variable speed adjustments for flexibility at work. It features one spray station equipped with six nozzle sets spraying oils or fragrances 6 sheets per time and a user-friendly touch screen display with features like job memory and patch counting.

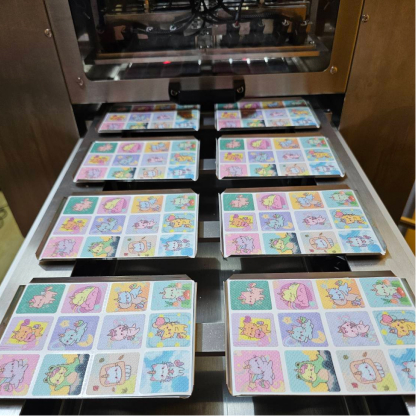

The Spray Oil Machine is adaptable the plate and nozzle set in the same design as patch design. Easy to work as putting the patch on plate and let the nozzle spraying oils or fragrances on patch. Then, packing the patch in the pouch and sealing the pouch.
Features
- Capable of spraying oils or fragrances on up to 40 sheets per minute
- Strong structure with a compact design that requires minimal installation space
- Customized plate and nozzle set as suitable for patch design
- Design of dual-tray conveyor system and variable speed adjustments for flexibility at work
- Inspection sensors as No patch No spray
- A user-friendly touch screen display with features like job memory and patch counting
- 4 language functions that is English, Thai, Chinese and Japanese
- 1-year warranty on all mechanical components
Add-On Options
- 2 patch sizes in one machine
- Automatic Patch Feeder (Coming soon)
Specification
| Machine Model: | SM003TH-01 |
| Machine Size: | W800 mm x L2400 mm x H1400 mm |
| Machine Weight: | 150 Kgs |
| Machine Voltage: | AC220V/110V 50-60HZ |
| Max power | 1500W |
| Air pressure | 0.4-0.6MPa |
